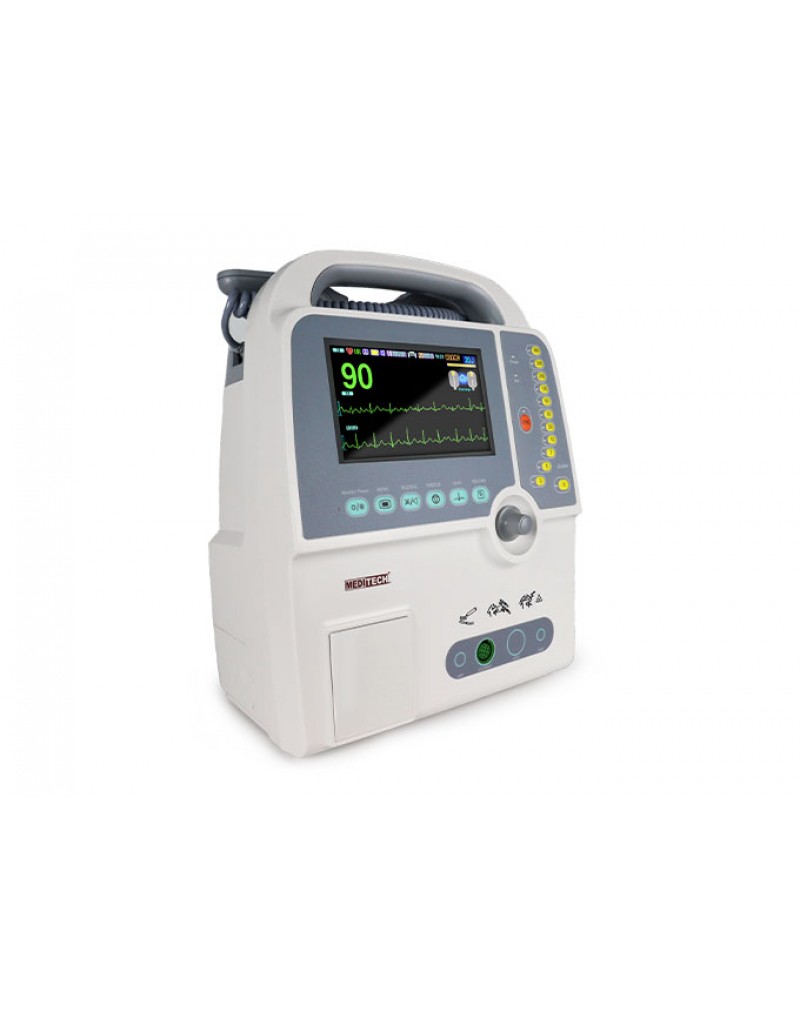

Defibrillator:
Large TFT screen 7 inch
ECG I II III AVR AVL AVF V1 V6 GND
Defibrillator type Manual Synchronized A synchronized
Output waveform Biphasic technology
Energy accuracy ∠+1%
Energy selection 0.3.5.7.10.20.30.50.100.200.300.360 joule(nominal at a resistance of 50)
Charging time Maximum 8 seconds to 360 Joules
Standard Adult/Pediatric Paddles Reusable external adult paddles(pediatric paddles integrated)
Come with two battery for longer capacity
Pulse Oximetry (spO2) (Option)
Display: SpO2 value pulse histongram waveform Pulse
Range: 0~99%for adult pediatric and neonatal patients
Probe: standard adult finger clip
AED Mode (Option)
AED Function: Auto analyze and charge x3 with programmable auto energy level selection screen prompts and voice prompts.
Shockable Rhythms: Ventricular fibrillation with amplitude >=200uV ventricular tachycardia with rates >=140bpm and QRS complex wave duration >=140ms.
Charge Control: Control on device front panel press key on paddle.
Prompts: Voice and visual prompts.
AED Mode (Option)
AED Function: Auto analyze and charge x3 with programmable auto energy level selection screen prompts and voice prompts.
Shockable Rhythms: Ventricular fibrillation with amplitude >=200uV ventricular tachycardia with rates >=140bpm and QRS complex wave duration >=140ms.
Charge Control: Control on device front panel press key on paddle.
Prompts: Voice and visual prompts.
Recorder (Printer) (Option)
Paper: 50mm thermal.
Speed: 12.5mm/sec 25mm/sec 50mm/sec. User-selectable 6-second delay.
Printing Method: High-resolution thermal print head.
Print-out Modes: Manual or automatic user-configurable.
On/Off Control: Front panel and paddle.
Automatic Function: 9-seconds recording initiated by alarm activation or defibrillator charge or defibrillator discharge.
