~~PC-Based Diagnostic Spirometry

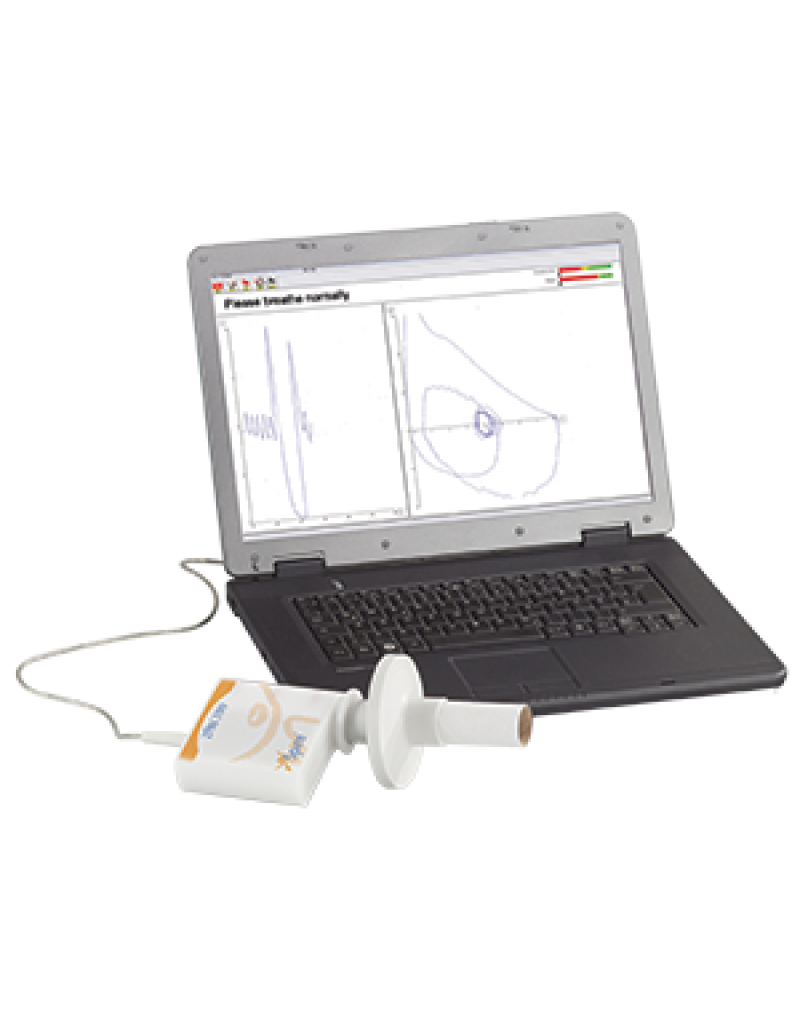

The ZAN 100 redefines complete spirometry testing with the technologically advanced, robust, and stable VIP™ pneumotach. Combined with the powerful ZAN-Tech software, the ZAN 100 delivers the ultimate in ATS/ERS compliant spirometry productivity, value, and investment protection. Utilising the same USB-based hardware and software as the full Pulmonary Function systems allow interchangeability of parts including filters and reducing training requirements.

Designed for longevity the ZAN VIP flow sensor lasts for years, eliminating the frequent replacement that many other flow sensors require. VIP features many characteristics that are critical to real-world respiratory testing including: low breathing resistance, low dead space, insensitivity to moisture, and fast response – resulting in improved performance and patient comfort.

Standard Tests:
•Spirometry (SVC)
•Flow Volume Loops (FVC and FEV1)
•Bronchodilator Response

The ZAN 100 Spirometer can be easily upgraded with a dosimeter, shutter, or rhinomanometry. By combining spirometry with bronchoprovocation and numerous other testing options including Rocc, Respiratory Muscle Assessment, Mouth Pressures, and Rhinomanometry, ZAN 100 provides unparalleled flexibility.

Technical Specifications

Mechanical Data
 Dimensions: 100mm x 90mm x 45mm
 Weight: 250g
 Housing Material: PolyOxyMethylene (POM)

Electrical Data
 Interface to Computer: USB
 Power Supply: Via USB port
 Power Consumption: <50mA
 IP Protection Type: IPX1 IEC 529
 Classification According to MDD: IIa 93/42/EWG dated June 14, 1993, appendix IX
 Application Component Type: BF according to VDE 0750 (DIN EN 60601-1)

Flow
 Flow Transducer Type: Variable Impedance Pneumotach (VIP)
 Measuring Principle: Differential pressure with variable diaphragm
 Measuring Range:  +0.02 – +20L/s
 Max Linearity Error: <2%
 Resistance: 0.05 kPA/(l/s) at 15 l/s
 Effective Dead Space: <60 mL
 Temperature Sensitivity: 0.5 %/°C, software compensated
 Humidity Sensitivity: <2% at 0-99% humidity
 Flow Resolution: <1mL/s
 Accuracy:  +2%, 0.05 – 15L/s

Volume
 Volume Range: 0-20L
 Volume Resolution: <5mL
 Accuracy: 2%, full range
 Back Pressure: .05 kPA/(l/s) at 15 l/s

Operating Environmental Conditions
 Temperature: 10°C to 40°C
 Relative Humidity: 20% to 90% at 20°C (no condensation)
 Barometric Pressure: 900 to 1060hPA
 Explosive Environment: This device may not be operated in an explosive or flammable environment.

Storage and Transportation Conditions
 Temperature: 0°C to 40°C
 Relative Humidity: 10% to 90% (no condensation)

PC Minimum Requirements (not included)
 Processor: 266MHz
 Operating System: Microsoft Windows ® 2000, Windows ® XP, Windows ® Vista, Windows ® 7, Windows 10
 Hardware Interface: 1 x USB 1.0
 RAM Memory: 512 MB
 Hard Disk Drive: 1.2 GB free space
 Peripheral Drive: CD-ROM
 Monitor Resolution: 800×600 pixel

Shutter (Optional)
 Dimensions: 180mm x 50mm x 80mm
 Weight: 420g
 Housing Material: PolyOxyMethylene (POM)
 IP Protection Type: IPX1 IEC 529
 Internal Power Supply: 12 VDC / max 600 mA via AccuSwitch
 External Power Supply: 5 VDC / 300 mA via USB port
 Power Consumption: <0.6 A at 12 VDC
 Additional Dead Space to VIP: 30mL
 Additional Resistance to VIP: 0.07 kPa/(l/s) at 14 l/s

Mouth Pressure
 Pressure Transducer: Semiconductor (differential pressure)
 Pressure Range: +15 kPa
 Accuracy: 1%, full scale
 Resolution: 16 bit
